Parallax 45RU 45 Amp RV Converter/Charger

The RV converter/charger is the heart of your RV’s 12V electrical system when connected to shore power or a generator. It converts 120V AC to 12V DC to power all your 12V appliances, lights, and electronics, while simultaneously charging your RV batteries. A failing converter can cause dim lights, dead batteries, or complete 12V system failure.

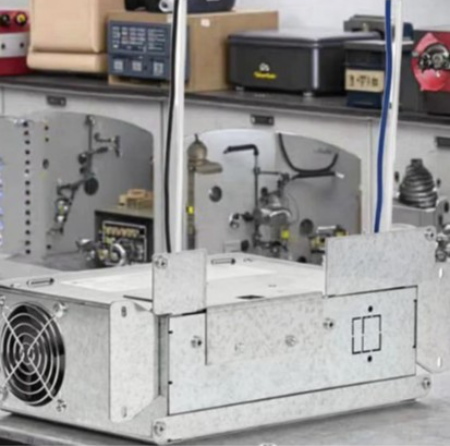

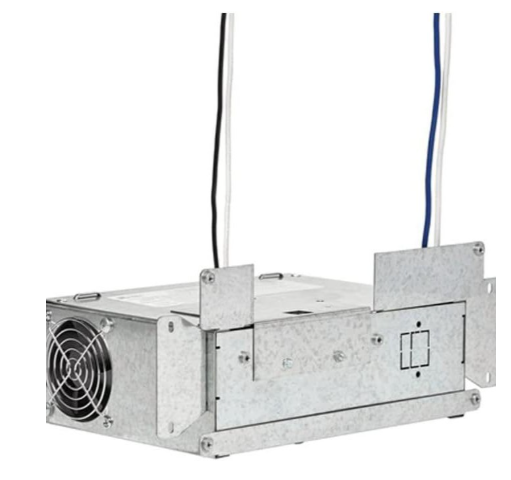

This Parallax 45RU 45-amp converter/charger is designed as a direct replacement for Parallax 4400, 4500, and 6300 series converter/chargers. It features 3-stage smart charging, built-in fan cooling, and comprehensive protection circuitry.

Compatibility

• Parallax 4445, 4455, 4465 converter/chargers
• Parallax 4545, 4555, 4565 series
• Parallax 6345, 6355, 6365 series
• Parallax 7145, 7155, 7165 series
• Most 30-50 amp RV converter/chargers with similar footprint
• Compatible with lead-acid, AGM, and gel cell batteries

Specifications

3-Stage Smart Charging

1. Bulk Stage: Maximum current (45A) at 14.8V to quickly recharge deeply discharged batteries. This stage runs until the battery reaches ~80% capacity.
2. Absorption Stage: Voltage held at 14.4V while current gradually decreases as the battery reaches full charge. This stage prevents overcharging while topping off the remaining 20%.
3. Float Stage: Voltage reduced to 13.6V for long-term maintenance. This stage keeps the battery fully charged without overcharging, ideal for extended shore power stays.

Installation Guide

1. Safety first: Disconnect 12V battery (negative terminal first). Unplug 120V shore power. Turn off the main 12V disconnect switch if equipped.
2. Access the converter: Locate the converter/charger, typically mounted in a cabinet or near the electrical panel. Remove any access panels.
3. Document connections: Take photos of all wiring connections before disconnecting. Label wires if needed.
4. Disconnect 120V AC: Remove the 120V AC input wires (black = hot, white = neutral, green = ground) from the converter. Use wire nuts to cap the exposed ends.
5. Disconnect 12V DC: Remove the 12V DC output wires (red = positive, white = negative) from the converter.
6. Remove old converter: Unscrew the mounting screws (typically 4-6 screws) holding the converter to the mounting bracket or wall.
7. Install new converter: Mount the new Parallax 45RU in the same position. Secure with mounting screws.
8. Reconnect 12V DC: Connect positive (red) and negative (white) wires to the corresponding terminals. Ensure tight connections.
9. Reconnect 120V AC: Connect hot (black), neutral (white), and ground (green) wires to the corresponding terminals. Use wire nuts or terminal blocks.
10. Test operation: Reconnect 12V battery. Plug in 120V shore power. Verify the converter powers on (fan may run). Measure 12V output with a multimeter — should read 13.6-14.8V depending on charging stage. Check all 12V appliances for proper operation.

Common Symptoms of a Bad Converter/Charger

• 12V lights dim or flicker when on shore power
• Batteries not charging — voltage stays below 12.6V
• No 12V power at all when on shore power
• Converter fan runs constantly or doesn’t run at all
• Burning smell or overheating converter
• Tripped circuit breaker on the 120V circuit
• Batteries go dead quickly even when plugged in
• Voltage fluctuates between 11V and 15V (unregulated output)

Frequently Asked Questions

Q: How do I test if my converter is working?

A: With shore power connected, measure the voltage at the 12V output terminals or at the battery. A working converter should read 13.6-14.8V (depending on charging stage). If the voltage reads the same as the battery voltage (12.2-12.6V) and doesn’t increase when shore power is connected, the converter is not charging. Also check that the 120V circuit breaker is not tripped.

Q: Can I upgrade from a 30A converter to this 45A model?

A: Yes, as long as your 120V AC circuit can handle the additional load. A 45A converter draws approximately 6-8A at 120V AC under full load. Most RV 120V circuits for converters are rated for 15-20A, so this should be fine. Also ensure your battery cables are sized appropriately (minimum 6 AWG for 45A).

Q: Is this converter compatible with lithium batteries?

A: This converter is designed for lead-acid, AGM, and gel cell batteries with the standard 3-stage charging profile (14.8V bulk, 14.4V absorption, 13.6V float). Lithium (LiFePO4) batteries typically require a different charging profile (14.6V constant voltage, no float stage). If you have lithium batteries, contact us for a lithium-compatible converter option.

Q: How long does a converter/charger last?

A: A quality RV converter/charger typically lasts 8-15 years with normal use. Factors that shorten lifespan include: excessive heat (poor ventilation), overloading (running too many 12V appliances), voltage spikes, and moisture. Regular cleaning of the fan and heat sink can extend the life of your converter.
